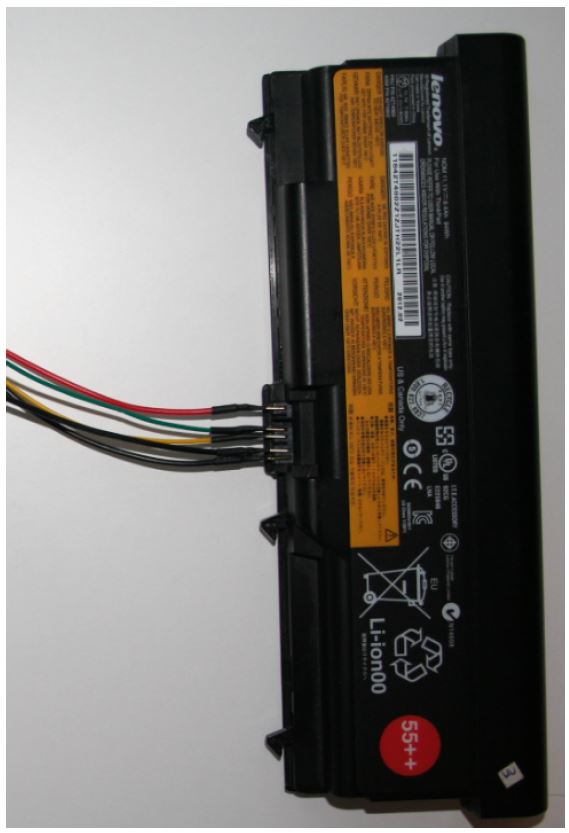

Laptop Battery Pin Definition Meanings As Below: +: Positive(red) -: Negative(black) C: Clock wire(coffee) D: Data wire(orange) T: Control(jumper) X: Blank pin The battery pin definition: Negtive(-) Positive(+) Clock(C) Data(D) Before asking for a battery pinout make sure you have read the generic approach to identify a battery pinout (Chapter 7): Manual_NLBA.pdf (laptopu.ro) If above method didn't not help the create a new topic with the battery brand name and part number in the title, e.g.: Pinout request for Laptop Battery Dell T54FJ Attach pictures with the real battery. 1. Check Pinouts of Battery. 2. Usually pinouts for positive negative are mentioned on battery, if not search on google pinouts for your battery model. 3. Take thin two thin wires about 7 inches. 4. Let Wire 'A' positive and Wire 'B' negative. 5. Remove 1cm cover from wire A from both sides. 6.

Laptop battery pinout diagram. Laptop Battery Charger Circuit Composed Of Bq24700 Power Supply Diagram Seekic Com. 12v Universal Charger For Laptop Notebook With Xl6009. Testing Laptop Battery Pinout Smbus Charge Capacity Kuzyatech. Homemade 10000mah Power Bank Circuit Diagram Using Li Ion Aa Battery. Today i am going to explain you how to repair battery charging & not charging problems using this methods. very easy to do. i am explain you using new hp 15... ASUS Internal Laptop Battery Pinout. Thread starter sidx1024; Start date May 15, 2016; Tags Asus Laptop Battery Motherboards; Sidebar. Forums. Laptops. Laptop Tech Support. Status Not open for further replies. Previous Next Sort by votes. S. sidx1024 Commendable. May 15, 2016 2 0 1,510 0. May 15, 2016 #1 ... Dell 33YDH Battery pinout. Am trying to find the pinout for the battery connector to use on another project, the connector is color coded as follows, black, black, black, blue, green, yellow, orange, red, red, red. I know the black are ground, the red are positive, what specifically would there be 3 red leads though?

The replacement pack has a broken or missing SMBus interface (which is what the OS uses to query the battery management device in the pack). Pin 4 (2.6V on your original pack) is the SMBus data pin. 2. The replacement pack has a broken or missing System Present input (V+ should be 0V unless you pull down Pin 6). 3. Coming to the pinout of my laptop battery connector, the lithium-ion cells are arranged in '3 series 2 parallel' configuration (3S2P), and the blades at both ends of the 9-blade/pin battery connector are 'power' terminals (Pin 9 and 8: Negative/Pins 2 and 1: Positive). The SMB is on pins 6 and 7. As this acer laptop battery pinout manual, it ends going on bodily one of the favored books acer laptop battery pinout manual collections that we have. This is why you remain in the best website to look the unbelievable books to have. Get free eBooks for your eBook reader, PDA or iPOD from a collection of over 33,000 books with ManyBooks. Laptop battery is a fairly sophisticated charging and cell-balancing system, with a bunch of protective and service circuitry, including charge monitor, all based on embedded microprocessors. It is called "smart battery". If the battery communication with host was successful, it means that some power element/fuse/MOSFET has died/fried/burned.

Laptop battery connector pinout diagram feb 07 2019 thank you for. Usually pinouts for positive negative are mentioned on battery, if not search on google pinouts for 8. The pin outs for the batteries in general are: Hello i am looking for a pin out diagram or other info for a 8 pin battery. ... Hey, Guys Welcome back to soft4led. If you are searching for HP Laptop Schematic Diagram PDF or Boadvoew for All HP Laptop Models then this is a useful post for you. Here In this post, We will share a collection of HP Laptop Circuit/Schematic Diagrams PDF and Boardview Files for Free Download. Step 8: CHECK BEFORE PACKING BATTERY. don't panic connect the charger to the laptop for 5 minutes then remove the charger. Step 9: SUCCESS! JUST PUT BATTERY AND CIRCUIT INSIDE THE BATTERY BOX. the final step to put battery pack and circuit in the battery box. do it gently . Nicusor. (@azzido) Member Admin. Press Power On button, Connect G to black wire and V to the red wire, press Start Reading then just connect C and D wires to the 3 middle pins from the battery connector (combining). NLBA Laptop Battery Analyzer with Chip Reset & Repair Option. Topic starter Posted : 05/04/2021 3:57 pm.

Here are a number of highest rated Hp Laptop Power Supply Pinout pictures upon internet. We identified it from trustworthy source. Its submitted by giving out in the best field. We put up with this nice of Hp Laptop Power Supply Pinout graphic could possibly be the most trending topic as soon as we part it in google plus or facebook.

I appreciate your write up on laptop battery repairs. Please when a laptop battery is replaced and there is no voltage at the outer terminals, but there is at the battery terminal. (1) What are the appropriate steps to take to get this rectified without damaging the BMS. (2) Where is the switch or reset on laptop BMS

Hp laptop battery status in windows7: Who knows, might help you. Rtc circuit diagram computer lcd pin diagram hp laptop battery pinout datasheet & application note, hp laptop battery pinout datasheet, cross web results. Make a diagram you will need it in future. When it is toshiba laptop battery pinout diagram cached21 apr 2011.

Pins 6 and 7 remain mystery for now and pins 8 and 9 are the battery positive. Next step is to try waking the battery up. We apply normal for it voltage (in the range of 3-4.2V per cell) and see if it "takes"any current. Nothing happens, no current is going in. Plan B- put the battery back in laptop and observe signals on the pin.

Laptop Charger or PSU (Set PSU to 18 or 19v) Thin Wire (You can get these wires from ethernet cable) See Image. Crocodile Clip. See image. Solution. 1. Check Pinouts of Battery. 2. Usually pinouts for positive negative are mentioned on battery, if not search on google pinouts for your battery model. 3. Take thin two thin wires about 7 inches. 4.
