Low flow cooling system and apparatus - Cummins Engine Company There is schematically shown in FIG. 3 two flow paths (e.g. engine loop 60 and cooling loop 70) for the coolant in one embodiment of the cooling system of the present invention. In the engine loop 60, a pump 40 is provided which delivers part of the coolant to the engine's block 2 and cylinder heads 4. Converting 444 XT Big Cam Cummins Low-Flow to High-Flow ... On a low flow system ALL the coolant in the upper water rail is recirculated back to the inlet of the water pump. The water to the radiator passes thru the oil cooler from the BOTTOM of the block, then if the engine is cool eough back to the inlet of the waterpump thru the bypass thermostat. Once the temp is reached the outlet of the oil cooler ...

PDF Cummins ISB and ISC, Low Coolant Level Sensor 54-265 11. Fill the cooling system with coolant, and check for leaks. 01/27/2012 f545871 1 23 1. Surge Tank 2. Sensor 3. Wire Harness Fig. 1, Low Coolant Level Sensor Installation Cummins ISB and ISC, Low Coolant Level Sensor Conversion 54-265 Freightliner Service Bulletin FLA COE FLB COE FLD Conventional Business Class FLC 112 Conventional Century ...

Cummins low flow cooling system diagram

...6BT coolant flow tech... | Dodge Cummins Diesel Forum First the basics; coolant enters the radiator from the top, exits the bottom. Coolant enters the water pump, flows up into the block, then up through the head, then forward through the thermostat, and back into the radiator. Repeat. My question (s) are regarding the heat exchanger and heater core flow. big cam cummins over heat - The Diesel Stop 1988 would be Big Cam IV. They were all low flow cooling. This system was known for over heating problems, and thermostats did not hold up well. You can change it to a full flow system like the earlier Big Cams. If the entire system is in excellant condition, it is usable, but is still problematic. raw water coolant flow rate at idle?? - Cummins Marine Forum Per a spec sheet I have for a C series 400 engine, raw water flow is 63 gpm (assuming that number is at rated rpm. So, doing the math, I calculate a flow of 14.5 gpm 18.7 gpm at an idle of 750 rpm. A calculator I found online indicates that my city water connection via 5/8th's 50 foot hose at 40 PSI will deliver 22 gallons a minute.

Cummins low flow cooling system diagram. Low-Flow Radiator Story - Harvesting High-flow cooling systems typically have about a 7 degree F. temperature drop from inlet to outlet. The low-flow system has about a 20 degree drop. The larger drop occurs because the low-flow radiator is divided into multiple section sections with the use of baffles in the top and bottom tanks. My radiator is divided into three vertical sections. Lubricating System And Cooling System of Cummins NTA ... Another oil header drilled the length of the block on exhaust manifold sode, supplies oil to six spray nozzles used for piston cooling. 1. INTAKE AIR CROSSOVER 2. ROCKER LEVERS 3. PUSH TUBES 4. INJECTOR 5. PISTON 6. CONNECTION ROD 7. CAM FOLLOWERS 8. CRANKSHAFT OIL SEAL 9. MAIN OIL PASSAGE 10. CRANKSHAFT 11. OIL PAN 12. OIL SUPPLY TUBE 13. Coolant diagram 6.7L dual radiators | DODGE RAM FORUM ... Good Morning all. I am new to this site. I own a 2014 Ram 2500 Laramie Heavy Duty 4X4 with the 6.7L Cummins. My question is does anyone have the diagram of the coolant system? I just replaced the upper y pipe and trying to learn Diesel. Any help would be apricated. Cummins 350 low flow heat issues. - The Diesel Garage Discussion Starter · #1 · Mar 4, 2014 Been having trouble that nobody can seem to figure out. Have a 350 big cam with the low flow system. Overheats pulling hard on a hill or digging into it on the freeway. Cools down as soon as you let off or stop and idle. The odd part to me is sometimes both lines going into the thermostat housing are cold.

Big Cam Cummins Low Flow To High Flow Conversion ... Cummins low flow cooling diagram best of ram 2500 6 7l cummins sensor overview so if you wish to receive all of these awesome images regarding cummins low flow cooling diagram click on save link to download the. Big Cam IV Cummins engine began over heating whenever the outside air temperature topped 100 F. Fan shroud in good condition. cummins 444 high flow cooling - ATHS The crane currently has a 6-71 without turbo, and 78,000lbs. with 230hp just doesn't cut it. I've come up with a cummins 444 cpl 821. I need to convert from the low flow cooling to high flow. I think I will need the water pump, thermostat housing and intake water manifold, and possibly the oil cooler. Cooling Your Big Cam IV & More - Pittsburgh Power If you're ordering a new truck, or repainting an old one, take some inspiration from the vintage trucks of the 1970s. Here's to 16 more years with 10-4 Magazine. It has been a fun ride! If you'd like more details about keeping your Big Cam IV cool, call us at (724) 360-4080 or visit our website at today. Back to News Viewing a thread - 855 BIG CAM CUMMINS OVERHEATING? The low flow ones have coolant lines to the radiator no bigger than an inch and a quarter or so diameter. The old full flow ones have hoses that are 2" or larger. Low flows were relatively late in the big cam production run. We had an '89 Volvo with a low flow system. Edited by Ben in the Basin 6/29/2013 23:31

5.9 Cummins Coolant Flow Diagram - schematron.org Cooling System Flow. Dodge L Cummins Cooling Kit Improves Coolant Flow to Cylinder #6. Install the rear plate (8) marked & o ring (9) in the diagram, then using heater. 3rd Gen Engine and Drivetrain -> - coolant flow - Anyone know what direction the coolant flows in or trucks.Cummins Cooling Kit-Improves Coolant Flow to Cylinder #6. From Cummins. 855 Cummins Low Flow Cooling System Diagram - Etfatehran.net first get a low pressure gauge of about 35 to 50 psi and install in the block or in the coolant system below the thermostat and on a big cam 4 cummins below the heads because that engine has water restrictors in the water manifold gasketsrun at rated rpm and check the water pressure and if it is too low that may mean you have a slipping water. 16 … Big cam low flow cummins running hot - Heavy Equipment Forums Sep 22, 2011. Messages: 51. Location: south carolina. ok I got a 1986 359 pete with a 400 low flow cummins engine. It has a new water pump, thermostats, hoses, and all system cleaned, also radiator rebuilt. It will idle and never heat up, if you drive it down road it will hear up in a couple miles. I took the plug out of top of water manifold ... Design of Radiators for Low Flow Cooling Systems 1985-08-01 Design of Radiators for Low Flow Cooling Systems 851472 There has been a recent surge of interest in low flow engine cooling systems. In such systems, a relatively low flow of coolant, compared to conventional engine cooling systems, is subject to a relatively large temperature drop through the radiator.

Cummins B-Series Coolant Plumbing

low flow to high flow | TruckersReport.com Trucking Forum ... I am working on 1980 359 pete, took out 400 cummins high flow cooling system and replacing it with a 444 cummins low flow system.what do I need to do tochange over the 444 to high flow. all the parts from the 400 will bolt up to the 444 except the head water manifold. the 444 has jake brakes,the manifold hits the rocker boxes and the jake.is there a easy way to change over the 444 to high flow ...

EGR Systems & Components

Big Cam Iv Over Heating - Aths The next thing is to put a low pressure gauge of 50psi on the side of the block into the coolant and not in the water manifold. At 1800 the water pump pressure should be around 38 to 40 psi with or with rad cap on. The reason you cant put it in the water manifold is you will have restrictors in the gaskets for the manifold seal.

CP3 Pump Failure Symptoms And Common Rail Injector Problems ...

US4520767A - Low flow cooling system and apparatus ... The disclosure illustrates a cooling system for a turbocharged diesel engine having an aftercooler and an oil cooler. The cooling system is defined by two flow loops, one for the engine and the...

Cummins Engine Troubleshooting | Tackle Some Your Cummins ...

Cummins Low Flow Cooling The upper hose is 1" and the lower is 1-1/4", so it's a 'low flow' system. I have heard that there were some problems with those and that a conversion was possible to high flow I haven't seen a good explanation of why the change was needed (or the service bulletins from Cummins on how to do it).

NT400BCA Cooling

big cam cummins over heat | Page 2 - The Diesel Stop The system must be filled thru this port with the engine running, very slow process, takes about 2 hours. It will continue to burp air and coolant out during this process, and you need to continue to top it up until it no longer burps air or coolant out. Now replace the plug and fill the rad to the proper level.

Diesel Engine Cooling System

Cooling Your Big Cam IV & More - 10-4 Magazine Peter Sharp, Vice President of Pittsburgh Power, has been working with the Big Cam Cummins for over 30 years and he highly recommends that you revert the low-flow system back to the high-flow system used on all Small Cam and Big Cam I, II and III engines. We at Pittsburgh Power can convert your low-flow cooling system back to full flow.

Marine Engine Air Flow Diagram - Cummins Diesel Engine ...

855 Cummins Low Flow Cooling System Diagram - best.lif.co.id Cummins low flow cooling system diagram. It should cool ok. There are two thermostats one is for circulating coolant strictly thru the engine block and at about 160 the other begins to open as the bypass thermostat starts to close circulating water to the radiator heat exchanger. The low-flow system has about a 20 degree drop.

24 Engine ideas | cummins, cummins engine, engineering

CUMMINS BIG CAM IV OVERHEATING. - The Diesel Garage I am running a 1987 big came iv low flow cooling and is currently giving me a headache. .Its overheating whenever it exceeds 40km/hr laden or unladen.Have changed water pump,locked the clutch fan to engine speed,redone radiator and got thermostats removed by the mechanic and never replaced.Now...

The Benefits of Fresh Water Flushing your Marine Diesel ...

big cam 400 cummins tricks | Page 7 | TruckersReport.com ... Cummions UNTIL the N-14 went with a LOW PRESSURE Oil System and with some of the Big Cams was running a Low Flow Cooling System. When you only have 25 PSI at WOT your Bearings and Camshaft and Rockers are going to take a freaking beating regardless of WHAT HP and FUEL PRESSURE YOUR SET AT.

Fresh water & Sea water Cooling System for Marine Diesel Engine

cummins x15 coolant flow diagram - theharvestworld.org Cummins low flow cooling system diagram. CUMMINS ENGINE ISX15 Service Workshop Repair Shop Manual. 9708-M0037-37MM-01. Consists of multiple volumes & includes CD-ROM. Every major component and system is designed by Cummins for total quality control, building on a proven engine with fully integrated electronics.

Can someone send me a diagram or explain to me how the ...

raw water coolant flow rate at idle?? - Cummins Marine Forum Per a spec sheet I have for a C series 400 engine, raw water flow is 63 gpm (assuming that number is at rated rpm. So, doing the math, I calculate a flow of 14.5 gpm 18.7 gpm at an idle of 750 rpm. A calculator I found online indicates that my city water connection via 5/8th's 50 foot hose at 40 PSI will deliver 22 gallons a minute.

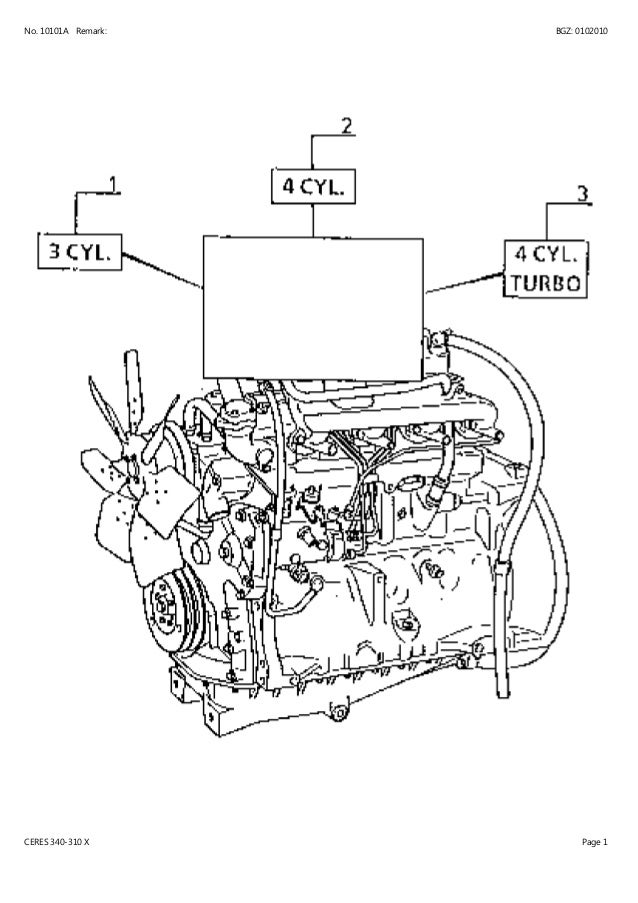

Claas ceres 340 310 x tractor parts catalogue manual (sn ct11 ...

big cam cummins over heat - The Diesel Stop 1988 would be Big Cam IV. They were all low flow cooling. This system was known for over heating problems, and thermostats did not hold up well. You can change it to a full flow system like the earlier Big Cams. If the entire system is in excellant condition, it is usable, but is still problematic.
