PDF CARBURETOR - Holley MANUAL CHOKE MODELS: A. Connect the choke control cable (Holley® P/N 45-228) to the choke actuation lever, and lock in place with the choke cable lock screw. B. Mount the outer sleeve to the cable clamp. C. Actuate the choke cable through its full range of motion to ensure full choke operation. Adjust as necessary. Choke Parts for Holley Carburetors HOLLEY MANUAL CHOKE KIT (can use 45-225sa) All of the parts required for a fast, easy changeover to hand choke operation. For all carburetor models 2300 4150 and 4160 with choke hardware mounting bosses on side of main body

Choke Components - Holley Choke Gasket. Choke Parts. Choke Plate. Choke Thermostat Shield. Cotter Pin. Fast Idle Cam. Fast Idle Cam Plate. Thermal Choke Control Tube. Material.

Holley manual choke diagram

Rochester Marine Carburetor Installation Diagram Carburetor Installation Diagram Holley carb manual choke adjustment NOTE: The 0-1850C carburetor is a 50-state emission legal replacement carburetors for 1965-69 V-8 applications. How To Adjust the Choke and Fast Idle on Holley Carburetors Page 7/58 The Holley Rochester 4 Barrel Carburetor Diagram - schematron.org Holley 600 Cfm Carb Diagram - schematron.org Holley C Street CFM 4 Barrel Carburetor, Manual Choke made by Holley, for as low as $ Free shipping when your order includes this. Its CFM of airflow, vacuum secondaries, single fuel inlet and mechanical Manual choke (cable actuated - hand controlled) for precise cold start control. bozeba.de 5.3.2022 · Bobcat p29 performance package ...

Holley manual choke diagram. Holley Electric Choke Wiring Diagram - schematron.org holley performance products has written this manual for the installation of the the electric choke kit is standard on many and later vehicles for warning: correct polarity must be observed when connecting the electric choke wires.holley electric choke diagram posted by ella brouillard in diagram you can also find other images like wiring diagram, … 39 holley 4150 parts diagram - Wiring Diagrams Manual HOME massagediagrams.racingportuense.es mb308 wiring diagram manual holley 4150 manual choke diagram bestseller suzuki vitara user manual pdf 2 7 L Dodge Engine Diagram Ford Fiesta Wiring Diagram Transmission Gearbox Diagram Of A Manual Clipper 110 Washing Machine Wiring Diagram Laguna Wiring Electric Diagrams 2001 2008 Toyota Pickup Wiring ... HOLLEY 390 CFM CARBURETOR MANUAL CHOKE - Allstate Carburetor HOLLEY 390 CFM CARBURETOR MANUAL CHOKE This is a BRAND NEW 0-8007 390cfm 4bbl Classic Gold Holley Finish or Bright Zinc Choose from drop down menu. Die cast Zinc with the classic dichromate finish. These are NOT aluminum Manual Choke Square Flange mounting Mounting gasket included

Holley 45-225 Choke Conversion Kit Choke Conversion. Warranty. Limited 90 Day. UPC. 090127066577. Part Number. 45-225. 5. This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations. PDF Holly Carburetor Model 4000 - MarkIIForum.com This Supplement covers the 1956 applications of the Holley Carburetor Model 4000. It is intended to be used with the Service Manual for the 1955 versions of this carburetor. Runuo scripts 5.3.2022 · Model Scout. Spike Power Sports® Manual Wiper Kit (77-0010) Affordable International Scout ll -Terra - Traveler Bumper Set 1971-1980 (Fits: International Harvester Scout II) 6. Call us today! 888-288-0550IH Scout & Light Truck Parts - Lots & Lots of stuff - (Howard Lake) condition: good. This Scout was re-built with the Kentrol body in 1993. Holley 600 Cfm Carb Diagram - wiringall.com PART# C. Be the first to write a review. $ Holley C Street CFM 4 Barrel Carburetor, Manual Choke made by Holley, for as low as $ Free shipping when your order includes this.Its CFM of airflow, vacuum secondaries, and single fuel inlet makes it amazingly universal. Add to that an electric choke and this carb is super easy to use on almost anything.

Holley 0-4779S 750 CFM Double Pumper Carburetor Holley Double Pumper® carburetors are a perfect performance upgrade for hot street cars and race vehicles. Double Pumper carburetors are an American icon when it comes to performance carburetors. From their roots as the premier carburetor on many factory muscle cars to powering thousands of vehicles across the finish line, the Double Pumper is a great choice whether you are burning up the ... Holley Carb Electric Choke Wiring - schematron.org Holley Carb Electric Choke Wiring. How to wire an electric choke for Holley or Edelbrock carburetor. 12/21/ The electric choke has two wiring connections, one positive and one negative. Congratulations on your purchase of a new electric choke kit from Holley! . the new choke rod from the kit, install the choke rod form the top of the carburetor. Holley 94, 2100, 2110 Carburetor Exploded View - Mikes ... Holley 94 2100 2110 AA-1. Holley 94, 2100, 2110 Carburetor Exploded View. Search For. Search. Holley 94, 2100, 2110 Carburetor Exploded View. 1. Screw - Choke Lever 2. Washer Screw Choke Lever 3. Lever Choke 4. Plunger Choke Lever 5. Spring Choke Lever Plunger 6. Retainer Fast Idle Rod 7. Washer 8. Rod Fast Idle 9. Screw Stat Cover Holley Carb Electric Choke Wiring - diagramweb.net Apr 20, · Currently have Holley Manual choke mechanical secondaries, thinking of switching to electric choke Eddy, should I splice a wire from the oil pressure. Aug 11, · Holley Carburetor Electric Choke Adjustment Procedures And Tips By Taylor Vlahos, DS Media Relations An improperly adjusted electric choke on a Holley four-barrel carburetor ...

PDF Exploded View and Nomenclature Manual for Models ... - Holley Use the REBUILD AND ADJUSTMENT manual during the reassembly for a step by step guide for performing each of the adjustments. ... 4010, 4011, 4150, 4160, 4165, or 4175 carburetor can be found on the right side of choke air horn. The List number for the 4500 can be found on the top of the main body casting. Below the list number is a date code ...

Installing A Manual Or Electric Choke On A Holley ... Installing an electric or manual choke can make engine start ups easier on your muscle car. These steps show how to install and adjust both types of chokes on just about any type of vehicle. Tags: Carburetor Installation and Tuning, Video, Holley.

Holly Carb 0-6210 Choke Conversion | Team Camaro Tech Holley Illustrated book shows diagram 41-1, and in that diagram, it clearly shows a heated side choke, and a cable manual choke setup for the side of the carb. IF the carb has the three screws to hold the choke body on, and the vacuum port for it, even undrilled, any Holley choke can be used, even the heated spring type, manual stove from the ...

PDF INSTALLATION, TUNING, AND ADJUSTMENT MANUAL ... - Holley transmission kickdown cable bracket (Holley® P/N 20-95) and geometry corrector (Holley® P/N 20-121). Otherwise, SEVERE transmission damage WILL result. Depending on your accelerator bracket, you will need one of the following throttle studs: Holley® P/N 20-2, 20-38, or 20-40. This carburetor is not designed to work

PDF CARBURETOR - Holley MANUAL CHOKE MODELS: A. Connect the choke control cable (Holley® P/N 45-228) to the choke actuation lever, and lock in place with the choke cable lock screw. B. Mount the outer sleeve to the cable clamp. C. Actuate the choke cable through its full range of motion to ensure full choke operation. Adjust as necessary. 10.

PDF Holley 0-4412S Carburetor Installation Instructions protection. Now would be the perfect time to upgrade to a Holley Powershot air filter (Holley P/N 120-146). 9. Connect the choke control cable (Holley P/N 45-228) to the choke actuation lever, and mount the outer sleeve to the cable clamp. 10. Actuate the choke cable through its full range of motion to ensure full choke operation. Adjust, as ...

PDF Holley 0-1850S Carburetor Installation Instructions MANUAL CHOKE MODELS: A. Connect the choke control cable (Holley P/N 45-228) to the choke actuation lever, and lock in place with the choke cable lock screw. B. Mount the outer sleeve to the cable clamp. C. Actuate the choke cable through its full range of motion to ensure full choke operation. Adjust as necessary. 10.

Installing Setting Manual Or Electric Choke On Holley ... Installing Manual Or Electric Choke On Holley Carburetor Tutorial Instructions Overviewhttp:// ...

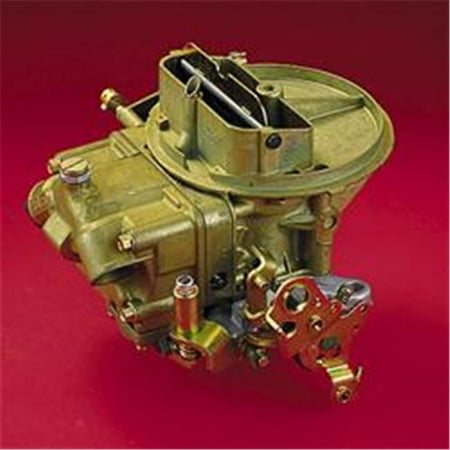

Holley Double Pump Carburetor, 650 cfm, Manual Choke ... Holley, Double Pump Carburetor, 650 cfm The best known carb for all racing. Features dual accelerator pumps, mechanical secondaries, dual metering blocks, center hung floats, dual feed fuel inlets, manual choke, power valve blow-out protection and a classic dichromite finish. 100% wet flow tested and calibrated. Free carb cap (52012).

How to Assemble a Holley Carburetor: Rebuild Guide ... Most Holley carbs with a choke use either a mechanical or an electric choke. The mechanical choke is controlled directly by the driver via a cable. The electric choke is fitted with a thermostatic spring inside a housing; careful adjustment provides dependable cold-engine starts. Manual Choke Installation Step 1: Install Choke Housing

PDF EXPLODED VIEW - MODEL 4150/4160 - Holley 201 Choke Assembly - Complete (divorced) 202 Choke Shaft Lever 203 Idle By-pass Adjustment Screw 204 Choke Lever Screw and Lockwasher 205 Choke Piston Link Retainer 206 Fast Idle Cam Retainer 207 Choke Rod Clevis Clip 208 Idle By-pass Adjustment Screw Spring 209 Choke Piston Lever Spacer 210 Choke Piston and Link Assembly

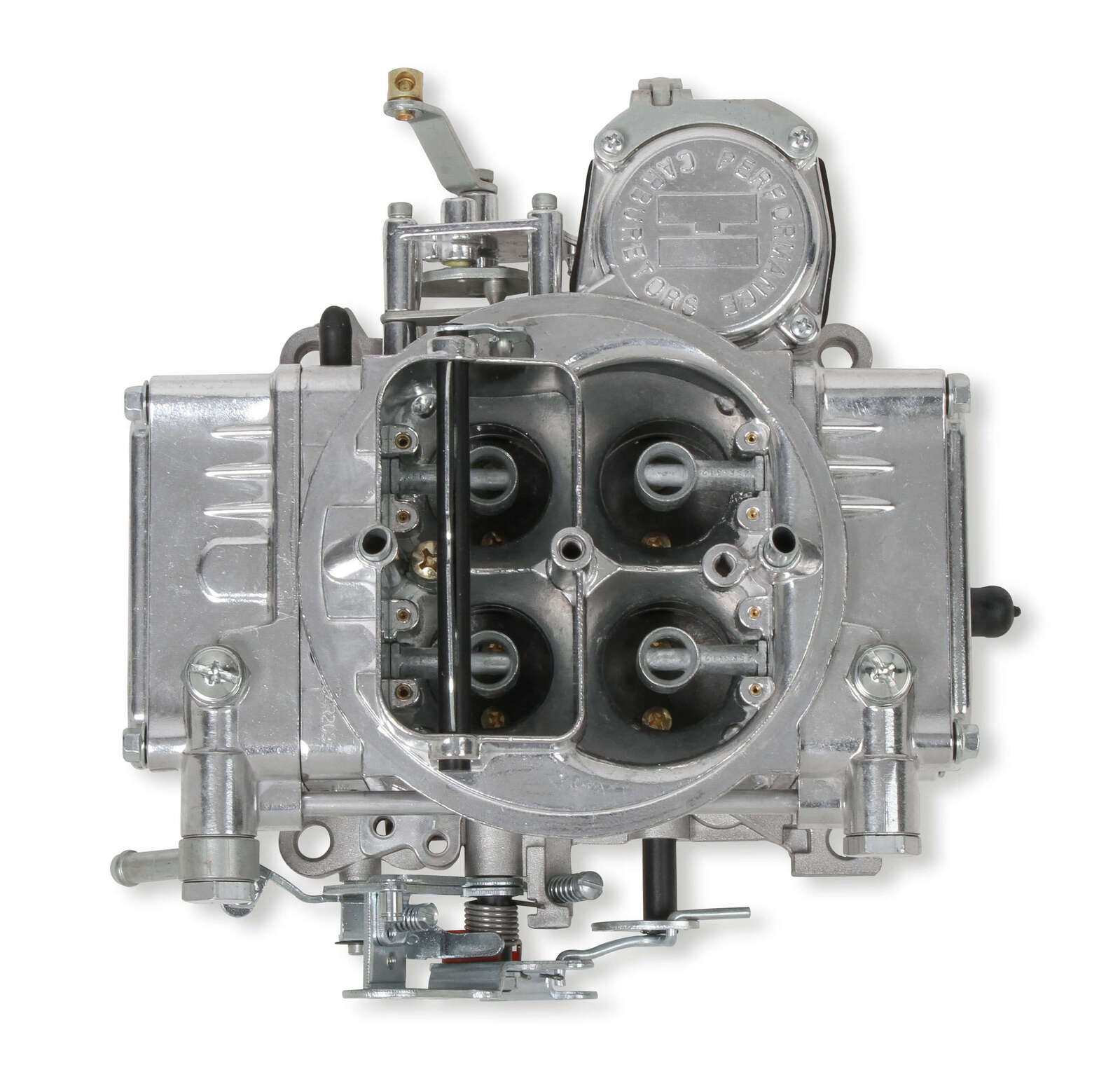

Holley 0-1850C 600 CFM Classic Holley Carburetor 600 CFM Classic Holley Carburetor. Manual Choke Vacuum Secondaries-4160. Part # 0-1850C. 2 Reviews. Estimated shipping date: 03/18/2022. Notify Me When Available Free Shipping. Your Price $480.95 Suggested Retail. $535.00 Add To Cart. Add to Wish List. Create a new list. View list ...

Manual Choke Diagram - Holley Manual Choke Diagram. Hi guys. I have a Holley 4160 (1850-3) 600 CFM vacuum secondary carb with an electric choke. I want to put a manual choke setup on it. I have one in a drawer full of dismantled Holley parts, so I wonder if anyone has a diagram showing how the put the manual choke together. Thanks.

How to install a Holley Manual Choke - YouTube Be sure not to put the fast idle screw in backwards like i did in the video. Sorry for the confusion
