Anonymous. 13 Answers. SOURCE: Need 2002 Chevy Tracker rear brake diagram on how. install star wheel toward the self ... 2002 Chevy Tracker Rear Brake Diagram 2/14 [eBooks] Consumer Reports New Car Buying Guide 2002-Consumer Reports 2002-05-14 Provides reviews and ratings of new cars, along with details on safety features and the results of crash testing. The Auto Guide 2002-Jacques Duval 2001-11 The Auto Guide 2002 is a tool in researching the best purchase that

Need 2002 Chevy Tracker rear brake diagram on how to install auto adjusters. install star wheel toward the self adjuster arm Read full answer. Jan 22, 2010 • 2002 Chevrolet Tracker. 0 helpful. 2 answers. How to adjust emergency brakes.

2002 chevy tracker rear brake diagram

Dec 18, 2013 · 2002 chevy tracker 2 dr convert replaced front and rear brake discs and pads and new r/r master cylinder and rear brakes didnt look like they have ever touch the drums but we changed the shoes anyway. … read more Tracker. Manual trans. Right. Auto trans. Left. 2.5l. Discontinued . Discontinued September 12th, 2020 - Need 2002 Chevy Tracker rear brake diagram on how to install auto adjusters Install star wheel toward the self adjuster arm 2002 Chevrolet Tracker 1993 chevy Suburban C1500 rear axle diagram or schematic Cars amp Trucks I have a 1992

2002 chevy tracker rear brake diagram. Cant bleed brakes. COLIN2001. MEMBER. 2003 CHEVROLET TRACKER. 92,000 MILES. No abs on unit. Replaced two rotten rear brake lines. Replaced master. Replaced both front calipers.I am a licenced mech for over 20 years and this unit will not bleed.3 lines off front section of master and 1 on the rear.2 lines of the front section go to each wheel ... 2004 chevy tracker rear brakes diagram how to back off drum - Chevrolet ... Copy and paste this into your search window: 2002 ford ranger rear brake diagram Chevy Tracker 2002 C-Tek™ Standard Rear Brake Drum by Centric®. Engineered, designed, and manufactured using the latest technologies, this drum will provide OE fitment and performance at a great value. Its configured with G3000... High quality at an affordable price Highly durable and reliable. Fuse box location and diagrams: Chevrolet Tracker (1999-2004) chevy-chevrolet-tracker-1999-2004-service-repair-manual-pdf-download 2/5 Downloaded from datacenterdynamics.com.br on October 28, 2020 by guest the 1960s through the 1980s, with the rise of off-roaders, the van craze of the 1970s and minivan revolution of the 1980s, the Chevy 2500HD 2002 Fuse Box/Block Circuit Breaker Diagram.

We have 191 Chevrolet Vehicles Diagrams, Schematics or Service Manuals to choose from, all free to download! 1923 chevrolet car wiring [846 KB] 1923 chevrolet general wiring [321 KB] 1923 chevrolet superior model [290 KB] 1923 chevrolet wiring [237 KB] 1925 chevrolet superior model series k [910 KB] 1927 chevrolet capitol and national [365 KB] Chevrolet Tracker (2002) - fuse box diagram Jonathan Yarden Mar 25, 2021 · 5 min. read In this article you will find a description of fuses and relays Chevrolet, with photos of block diagrams and their locations. 21 posts related to 2002 Ford Taurus Drum Brake Diagram. Ford Taurus Drum Brake Diagram. ... 2001 Ford Taurus Rear Suspension Diagram. 1995 Ford F150 Drum Brakes ... 2002 Silverado Trailer Brake Wiring Diagram. 2002 Chevy Impala Brake Line Diagram. 2002 Ford Expedition Front End Diagram. 2002 Ford Explorer Fuse Box Diagram. 2002 Ford ... 2002 Chevy Tracker. Type. power front disc/rear drum, optional antilock brakes. Rotor diameter x thickness, front. (in / mm) 11.30 x 0.67 / 287 x 17. Drum diameter x width, rear. (in / mm) 8.7 x 2.1 / 220 x 54.

Went to replace the rear brake shoes and drums on a 2003 Chevy Tracker and when I pulled off the drum the adjuster, adjuster spring and pawl lever were not hooked up, they were just laying in there. This was both sides so I was wondering if anyone had a diagram of how this parts get installed. 2002 Chevy Tracker Rear Brake Diagram New Cars and Trucks 2002-David Van Sickle 1955 Thoroughly revised and updated for 2002, the guide that has helped thousands of car and truck buyers choose the right vehicle is now better than ever. Includes full-color photos plus easy-to-read comparison charts, Weekend project turned into replacement of the rear brake lines and brake shoes / drums. Video is an overview of the process but does not include step by st... Buy a 2002 Chevrolet Tracker Drum Brake Hardware Kit at discount prices. Choose top quality brands AC Delco, API, Carlson, Centric, Dorman, Dynamic Friction, Raybestos.

Chevrolet Fuse Box Diagram: Fuse Box Chevrolet Tracker ...

Nov 12, 2012 · Need brake line diagram for 1999 tracker. Check the links, Usually run them tight to frame rails until you reach flex lines,splitters or proportioning valves. 2001 Chevy Tracker 4WD TJ0411801 Brake Lines L34M41J10367. Tracker Steel Brake Line Replacement.

Front Suspension for 2002 Chevrolet Tracker | NewGMParts.com

REAR Brake Drums Ceramic Shoes 2000-2003 2004 Chevy Tracker Suzuki Grand Vitara (Fits: 2002 Chevrolet Tracker)

Chevrolet Tracker (2002) - fuse box diagram - Auto Genius

View of all springs installed of ebrake and drum brake shoes chevy tracker suzuki vitara

Back Door for 2002 Chevrolet Tracker | GM Parts Online

Listed below is the vehicle specific wiring diagram for your car alarm, remote starter or keyless entry installation into your 1999-2004 Chevrolet Tracker.This information outlines the wires location, color and polarity to help you identify the proper connection spots in the vehicle.

Show diagram rear drum brakes 2001 tracker - Fixya

Chevrolet Tracker (2002) - fuse box diagram Year of production: 2002 Instrument panel fuse block This fuse box is under the left side of the instrument panel. Fuses Usage P/W Power Windows DOM Dome Light, Radio Memory TAIL License Plate Light, Clearance/Marker Lights, Instrument Panel Illumination, Warning Tone HAZ Hazard Lights, Turn Signal IG O2 Sensor Heater, Cruise Control, Ignition …

1997 Chevrolet Cavalier rear brake shoes and hardware diagram

Chevrolet Suburban (2002) - fuse box diagram Year of production: 2002 Instrument panel fuse block Name Circuit protected HVAC 1 Climate Control System IGN 3 Ignition, Power Seats BRAKE Anti-Lock Brake System HTR A/C Climate Control System IGN 0 PRND321 Display, Odometer, PCM CRUISE Cruise Control, Instrument Cluster 4WD Four-Wheel Drive System, Auxiliary Battery TURN Exterior Lamps, Turn ...

Chevy tracker parking brake parts source? | Suzuki Forums

Fuel System Components for 2002 Chevrolet Tracker. Module Ac control. Relay Tracker. F/injr & f/pump. 2.5L. Ac. Metro. 1.0l. Control Module Door lock control. Tracker. Control Module Daytime running lamp.

1999 chevy tracker with drum brakes (shoes) on the rear. The ...

7.09 x 1.18" Brakes. Vendor:nisshinbo. Discontinued. Discontinued. 91174799 ...

Chevrolet Tracker - Wiring Diagrams

2002 Chevrolet Tracker brakes problems with 10 complaints from Tracker owners. The worst complaints are brake lines leaking, service brakes, and service brakes, hydraulic.

2000 Chevy Tracker 4wd 2.0 liter - diagram of all brake lines ...

2002 chevy tracker need a diagram showing how rear brake shoes go together ... 2002 Chevy Cavalier Rear Brakes grab, we have replaced drum,shoes, new assembly. worked fine for around 1000 miles, I am now having the same problem ...

Engine Parts for 2002 Chevrolet Tracker | GM Parts Online

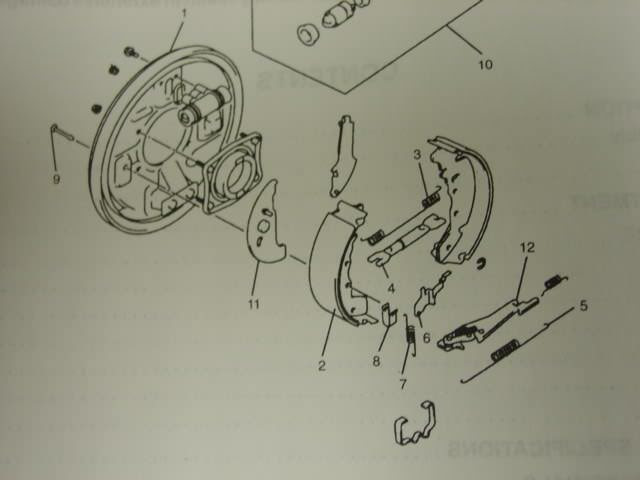

Apr 21, 2013 · 630 Answers. SOURCE: Need a parts diagram or assembly diagram for rear. Step 1. Remove the the brake drum from the vehicle. Step 2. Once you have the drum removed, it is a good idea to clean the area of dust with compressed air or brake wash spray. Step 3. Disconnect the Springs, removing the outer one first using the brake spring removal tool.

2001 chevy tracker 2.5 v6 serpentine belt change - Fixya

rear brake diagram truck diagram in, 1998 chevy k1500 brake line diagram general wiring diagram, how to fix 2001 chevrolet tracker diagram for rear axle, need rear brake diagram for 1994 chevy k2500 4x4 fixya, fuse box diagram chevrolet trailblazer 2002 2009, install a brake proportioning valve tech article chevy, chevrolet brake line carparts ...

Chevrolet GM OEM 1999 Tracker Brake-Rear-Brake Shoes Spring ...

Mayor: An expert whose answer got voted for 2 times. Contributor. 13 Answers. Re: Need 2002 Chevy Tracker rear brake diagram on how to... Install star wheel toward the self adjuster arm. Posted on Jan 22, 2010. Helpful 2.

SUZUKI OEM 99-04 Vitara Brake-Rear-Brake Shoes Adjuster Right 5381065D00 | eBay

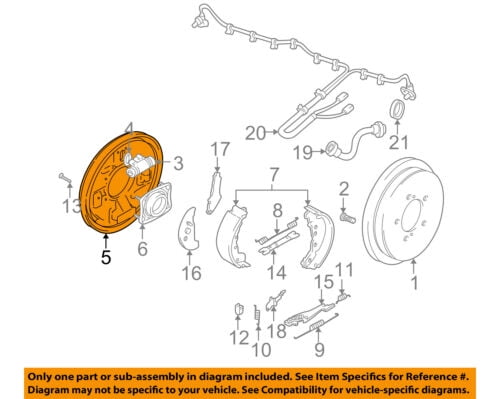

2004 chevy tracker rear brake s diagram how to back off drum - Chevrolet ... Copy and paste this into your search window: 2002 ford ranger rear brake diagram 91175636 - Brake s: Brake Shoes Spring for Chevrolet: Tracker Image Placeholder. Brake Shoes Spring · 91175636. Brake Shoes Spring, Right. Rear adjuster. Anonymous. 13 Answers. SOURCE: Need 2002 Chevy Tracker rear brake diagram on how ...

Chevy tracker parking brake parts source? | Suzuki Forums

September 12th, 2020 - Need 2002 Chevy Tracker rear brake diagram on how to install auto adjusters Install star wheel toward the self adjuster arm 2002 Chevrolet Tracker 1993 chevy Suburban C1500 rear axle diagram or schematic Cars amp Trucks I have a 1992
