My 1953 Jubilee Ford with the external hydraulic pump just isn't working at all. I have tried to bleed the pump, but it just doesn't seem to get much. Ford jubilee tractor hydraulic diagram. Ford naa golden jubilee hydraulic system parts for sale at discount prices. The ford naa golden jubilee was released as part of the 50th anniversary of ford. Remote hydraulic modification for the ford golden jubilee naa tractor by paul schultz the ford naa tractor 1953 54 comes with an adapter plate that enables use of the internal hydraulics for ...

Ford tractors use hydraulic assist systems to raise, lower or move a variety of lifts, loaders and earth-moving tools. All Ford tractors have the same hydraulic components: a pump, reservoir, high-pressure filter, hoses and fittings and hydraulic pistons. Having "inline hydraulic systems" means that an operational ...

Ford jubilee tractor hydraulic diagram

Ford Jubilee 3pt hydraulic lift problem. Jump to Latest Follow 1 - 5 of 5 Posts. tacker ... (item 45 on the attached diagram) that holds your lift lever in position. Your disc may be worn out, or it may need more pressure applied to it through a spring by tightening the nut that holds the lever on. ... A forum community dedicated to all tractor ... Ford Jubilee Hydraulic Problem. Jump to Latest Follow 1 - 16 of 16 Posts. T ... Discussion Starter · #1 · Aug 3, 2015. I have a 1953 Ford Jubilee tractor that is suffering from really weak hydraulic lift. The hydraulics were able to lift a bush hog (but the implement bounced every few seconds), but if I stood on the hog to add 200lbs more weight it couldn't lift it at all. So I removed the ... Ford jubilee tractor hydraulic diagram. Ford naa golden jubilee hydraulic system parts for sale at discount prices. Pus operates whenever engine is running when backing up to an implement you can really spot the lower links of the ford tractor with the live action hydraulic system. Hydraulic cylinders spool valve kits bushings control valves hydraulic pumps cylinder seal kits covers bushings ...

Ford jubilee tractor hydraulic diagram. Ford Jubilee Hydraulic Parts found in: Front Hydraulic Pump Drive Shaft, Tachometer (Proof Meter) Drive Bolt, Piston Hydraulic Pump, Hydraulic Valve Adapter Kit includes o-rings and instructions, Hydraulic Lift Piston, 2-1/2".. Home Ford Jubilee and NAA Parts Hydraulic Pump Hydraulic Pump. Hydraulic pump and related parts diagram for Ford Jubilee and NAA Tractors. 1953-1954. [Vane Type] Ref # Ford Part Number *Links provided for available parts: Part Name: 908: EAF908B: Gear (hydraulic pump) 933: EAF933A: Manifold (hydraulic pump intake) 934: EAF934A: Gasket (hydraulic pump intake manifold small) 935: EAF935A: Gasket ... October 25, 2020. October 23, 2020 by admin. Firing Order For 1953 Ford Jubilee Tractor - It's crucial that you know which financial institution (or cylinder head) is # 1 to help decide a starting place for firing order or just to exchange the proper portion, like an Oxygen detector, gas injector or ignition coil. Hydraulic Line Set - This manifold fits tractors with piston type pump (round body) for tractor models: Jubilee, NAA. (Part No: NAA876A) $468.70. Hydraulic Pump - Complete Piston Type Pump can also replace the Vain Style Pump (Hydraulic Manifold must be changed to a Piston Type if replacing a Vain Type.

The new Ford Tractor's Hydraulic System can lift approximately 1000 pounds at the drawbar. PUS Operates whenever engine is running When backing up to an implement you can really "spot" the lower links of the Ford Tractor with the Live-Action Hydraulic System. You can do this with the clutch engaged or disengaged. You get quick, accurate response—makes easy 3-point implement attachment even ... Installation of a new lift piston, relief valve, and gaskets to try to stop the lift from jumping with the brush hog attached. Remote Hydraulic Modification for the Ford Golden Jubilee (NAA) Tractor By Paul Schultz The Ford NAA tractor (1953-54) comes with an adapter plate that enables use of the internal hydraulics for operating various implements. Unfortunately, the OEM adapter plate is basically a cover and does not provide for proper routing of the internal hydraulics for remote operations. Back in the day there ... Vickers Hydraulic Pump Vane-Rotor Kit. …TO14701, TO18125 Ford - Fits: [ Golden Jubilee, Jubilee, NAA (all using square vane style hydraulic pump with 5/8" wide vanes, 1953 to 1954) ]; Replaces: vane set: CPN981A, ring: EAF973B, O-ring: EAF980A Oliver - Fits: Super 55 (all using 1ES2043 1500 Psi square vane hydraulic pump with 5/8" wide ...

1954 Jubilee Hydraulic Problem. Harry Jonas. O.K. Guys, Who know alot about Jubilees? Got a '54 with an irritating hydr problem. It has a Victors Original Vane pump (which has been rebuilt). I have replaced the relief valve down in the reservoir, and have put a repair kit (including O-ring and new leather for piston, along with all the gaskets ... Get the best deals on Ford NAA Hydraulics when you shop the largest ... Fits Ford NAA JUBILEE 1953 - 1954 TRACTOR HYDRAULIC HYD LIFT TOP REPAIR KIT LCRK. Hydraulic Pump Swap On A Ford 600 Tractor. is free HD wallpaper. This wallpaper was uploaded at October 25, 2020 upload by admin in Diagram . Ford Jubilee Firing Order - It's crucial that you know which bank (or cylinder Top) is primary to assist decide a place to start for firing order or maybe to change the proper aspect, just like an Oxygen ... We have thousands of new and used Ford tractor parts for the earlier models built from 1948 to 1964. At Broken Tractor you can find Ford 8N hydraulic pumps as well rebuilt and new hydraulic pumps that fit the Ford Jubilee, NAA (Jubilee), 600, 601, 640, 800, 801, 841 and other Ford tractors.

Ford Jubilee & NAA hydraulic lift shaft parts. Including hydraulic lift rod, piston, bushings, hydraulic lift arm, lockwasher and o-rings. tractor parts for your antique Ford tractor

Check out our On-Line Parts Catalog for vintage Ford NAA, Jubilee, 600, 700, 800, 900 tractors, Engine Rebuild Kits, drivetrain, and engine parts, front axle parts carburetors and much more.. Ford NAA Parts, a division of Davis Tractor Parts(DTP), is a distributor of new, quality tractor parts for your favorite Ford NAA or Jubilee tractor.

1953 Ford Golden Jubilee - Rebuilt Gas Tractor. 35 hp gas engine, 4 speed transmission, live hydraulic system and Category I 3 Point Hitch. Full instrumentation and engine coolant heater.

1953 NAA Jubilee hydraulic lift problem. The 3 pt. stopped working due to the hydraulic line on my Jubilee springing a leak. I had the line brazed and refilled the hyd fluid. 3 pt. still doesn't work. Does the hydraulic pump need to be primed somehow, or does the system need to be bled (as in brakes), or what?

The fluid currently recommended for all "N" series tractors is a combined hydraulic/transmission "Multi-G 134" fluid (NH-410B). The NH-410B is the current New Holland Agriculture OEM specification that is equivalent to Ford ESN-M2C-134D. A premium synthetic that says it "MEETS" NH-410B (M2C-134D) is much thinner than 80 or 90 weight gear oil. It's like a 10-30 multigrade motor oil thickness ...

1954 ford jubilee tractor w/ gas motor 3 pt, 540 pto, gear drive trans. 12.4 x 28 rear tires 60% (weathered) brushed painted. price; $2,450.

I still have the Jubilee that I grew up on, so I am pretty familiar with the tractor. However, this one has some sort of modification I have not seen before. Where the tach drive cable would normally connect to the rear of the hydraulic pump, there is what looks to be some sort of transfer pump. There is what looks to be a suction line for this ...

How To Repair Ford Tractor Hydraulics - Ford Tractor hydraulic Lift repair. For additional information check out this next video ...

Tractor: Kubota B2630,Ford NAA, Kubota L2550GST ... What I would like to know is whether the tractor hydraulic pump is at fault or whether ...

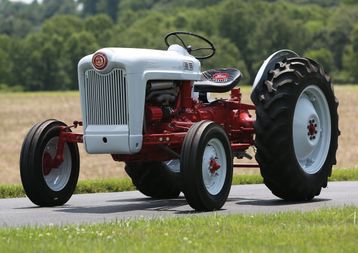

Utility tractor. Factory: Highland Park, Michigan, USA. Total built: 128,965. Original price: $1,560 (1954 ) The Ford NAA "Golden Jubilee" was released as part of the 50th anniversary of Ford. The 1953 model (production began in September 1952) had a special nose badge noting the anniversary.

33 Ford Jubilee Tractor Hydraulic Diagram Wiring Diagram . Save Image. Ford Jubilee Hydraulic Schematic. Save Image. FORD NAA 600 601 800 801 2000 4000 TACH ADAPTER DRIVE . Save Image . Ford 600 Tractor Hydraulic Diagram Wiring Diagram Source ...

Ford Jubilee Hydraulic Lift found in: Single Spool Double Acting Hydraulic Remote Valve Kit, Inner Hydraulic Lift Control Rod Pin, Hydraulic Lift Piston, ...

Rachel will help take the guesswork out of the hydraulic system on a Ford 500, 600, 700, 800, 900 tractor or early 2000/4000 tractor with ...

We want to help you find your Ford Tractor Parts! If you have questions or need help finding your part call our Parts Helpline. 1-866-441-8193 Parts Helpline. -Online Parts Store Helpline Hours - Weekdays 8:00 am - 5:00 pm and Saturday 8:00 am - 12:00 pm Central Time. Ford Tractor Parts Lookup / Parts Catalog by model number.

At broken tractor you can find ford 8n hydraulic pumps as well rebuilt and new hydraulic pumps that fit the ford jubilee naa jubilee 600 601 640 800 801 841 and other ford tractors. All of our parts for sale are new aftermarket parts unless specified otherwise in the description.

Report to Moderator. Posted: Thu May 23, 2019 12:30 pm Post subject: 1954 Ford 860 Hydraulic diagram and help. Help I have an Ford 860 tractor that seem to have some problem with the hydraulic. When I first crank the tractor and try to lift a piece of equipment it lifts real slow. It will finally come up but the motor has to be running fast for ...

UF70690 O-Ring and Backup Ring for UF70680 O-Ring and backup ring for UF70680 Fits: 9N, 2N, 8N, Jubilee, NAA

Tune Up Kit for Ford Tractor Models NAA Jubilee 600 601 800 801 2000 4000 4cyl Models 1953 to 1964. 3.9 out of 5 stars. 36. $50.02. $50. . 02. Get it Wed, Nov 3 - Tue, Nov 9. $8.00 shipping.

I have a 1954 Ford NAA. I have had the tractor for 30 years and it was missing the hydraulic pump when I got it. Someone made a plate to cover the place where it bolts to the engine and had cut and brazed the lines at the back of the tractor.

Ford jubilee tractor hydraulic diagram. Ford naa golden jubilee hydraulic system parts for sale at discount prices. Pus operates whenever engine is running when backing up to an implement you can really spot the lower links of the ford tractor with the live action hydraulic system. Hydraulic cylinders spool valve kits bushings control valves hydraulic pumps cylinder seal kits covers bushings ...

Ford Jubilee Hydraulic Problem. Jump to Latest Follow 1 - 16 of 16 Posts. T ... Discussion Starter · #1 · Aug 3, 2015. I have a 1953 Ford Jubilee tractor that is suffering from really weak hydraulic lift. The hydraulics were able to lift a bush hog (but the implement bounced every few seconds), but if I stood on the hog to add 200lbs more weight it couldn't lift it at all. So I removed the ...

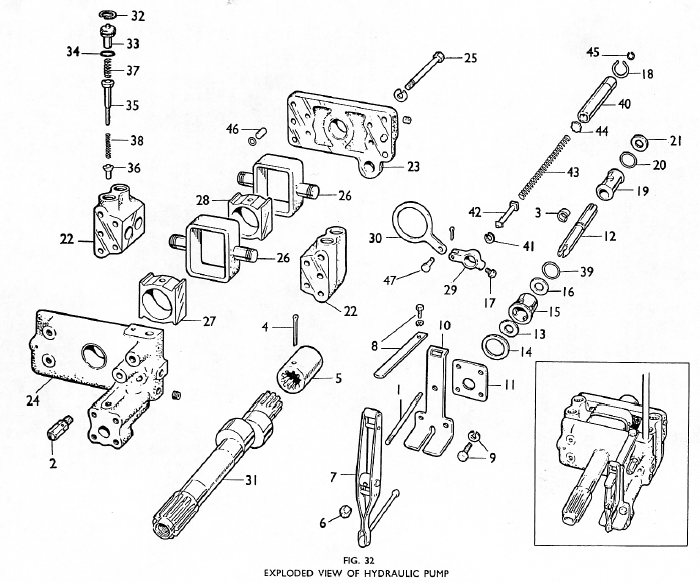

Ford Jubilee 3pt hydraulic lift problem. Jump to Latest Follow 1 - 5 of 5 Posts. tacker ... (item 45 on the attached diagram) that holds your lift lever in position. Your disc may be worn out, or it may need more pressure applied to it through a spring by tightening the nut that holds the lever on. ... A forum community dedicated to all tractor ...
