Electron transitions down to level 1 are part of the Lyman series. Transitions down to level 2 are part of the Balmer series. And transitions down to level 3 are known as the Paschen series. When we look at the remaining answer options, we see that option (D) shows transitions to the third energy level, which is the Paschen series.

Choose the correct energy diagram describing the lyman and paschen series.

Paschen series (n l =3) The series was first observed during the years 1908, by a German physicist Friedrich Paschen. Thus the series is named after him. Paschen series is displayed when electron transition takes place from higher energy states(n h =4,5,6,7,8,…) to n l =3 energy state. We get a Lyman series of the hydrogen atom. It is obtained in the ultraviolet region. This formula gives a wavelength of lines in the Lyman series of the hydrogen spectrum. Different lines of Lyman series are. α line of Lyman series p = 1 and n = 2. α line of Lyman series p = 1 and n = 3. γ line of Lyman series p = 1 and n = 4. Further, for n=∞, you can get the limit of the series at a wavelength of 364.6 nm. Also, you can't see any lines beyond this; only a faint continuous spectrum.Furthermore, like the Balmer's formula, here are the formulae for the other series: Lyman Series. Paschen Series. Brackett Series. Pfund Series

Choose the correct energy diagram describing the lyman and paschen series.. In physics and chemistry, the Lyman series is a hydrogen spectral series of transitions and resulting ultraviolet emission lines of the hydrogen atom as an electron goes from n ≥ 2 to n = 1 (where n is the principal quantum number), the lowest energy level of the electron. PHYS 1493/1494/2699: Exp. 7 - Spectrum of the Hydrogen Atom 2 Introduction The physics behind: The spectrum of light The empirical Balmer series for Hydrogen The Bohr model (a taste of Quantum Mechanics) Brief review of diffraction The experiment: How to use the spectrometer and read the Vernier scale Part 1: Analysis of the Helium (He) spectrum Energy-level diagram for hydrogen showing the Lyman, Balmer, and Paschen series of transitions. The orbital energies are calculated using the above equation, first derived by Bohr. Electron total energies are negative, since the electron is bound to the nucleus, analogous to being in a hole without enough kinetic energy to escape. Energy-level diagram for hydrogen showing the Lyman, Balmer, and Paschen series of transitions. The orbital energies are calculated using the above equation, first derived by Bohr. Figure 7 shows an energy-level diagram for hydrogen that also illustrates how the various spectral series for hydrogen are related to transitions between energy levels.

The Lyman series lines occur in the ultraviolet region, the Balmer are in the visible region, and the Paschen and Brackett are in the infrared. The wavelength of the photons emitted by the hydrogen atom may also be calculated using the Rydberg equation shown below. Lyman, Balmer, and Paschen series. o Clicking on the label will shoot a photon of that energy. o If the photon is in visual band, its true color is shown. Photons of longer wavelengths are shown as red and shorter wavelengths as violet. ? The ?Event Log? in the lower right lists all the photons that the atom has encountered as well as all the ... The transitions, which are responsible for the emission lines of the Balmer, Lyman, and Paschen series, are also shown in Fig. 1.6. The Balmer emission lines correspond to transitions from the levels for which n is greater than or equal to 3 down to the level for which n = 2. These transitions all produce light in the visible part of the spectra. A. Choose the correct alternative (a), (b), (c) or (d) for each of the questions given below: ... Wavelengths of the first lines of the Lyman series, Paschen series and Balmer series, in the hydrogen spectrum are denoted by λL, λP, and λB, respectively. ... Correct diagram with at least one arrow, an incident or reflected ray.

The Balmer series, or Balmer lines in atomic physics, is one of a set of six named series (Lyman, Balmer, Paschen, Brackett, Pfund) describing the spectral line emissions of the hydrogen atom, that result from electron transitions from higher levels down to the energy level with principal quantum number 2. [AL] Have a student draw a planetary model to match the energy-level diagram shown above. Have students model the changes in energy states on their planetary model as they are shown on the energy-level diagram. Encourage students to use terminology such as Balmer series, Lyman series, and Paschen series in their explanations. The diagram below shows three of these series, but there are others in the infra-red to the left of the Paschen series shown in the diagram. The diagram is quite complicated, so we will look at it a bit at a time. Look first at the Lyman series on the right of the diagram - this is the most spread out one and easiest to see what is happening. The Balmer series includes the lines due to transitions from an outer orbit n > 2 to the orbit n' = 2. Named after Johann Balmer, who discovered the Balmer formula, an empirical equation to predict the Balmer series, in 1885. Balmer lines are historically referred to as "H-alpha", "H-beta", "H-gamma" and so on, where H is the element hydrogen.Four of the Balmer lines are in the technically ...

Authors Library Caltech Edu

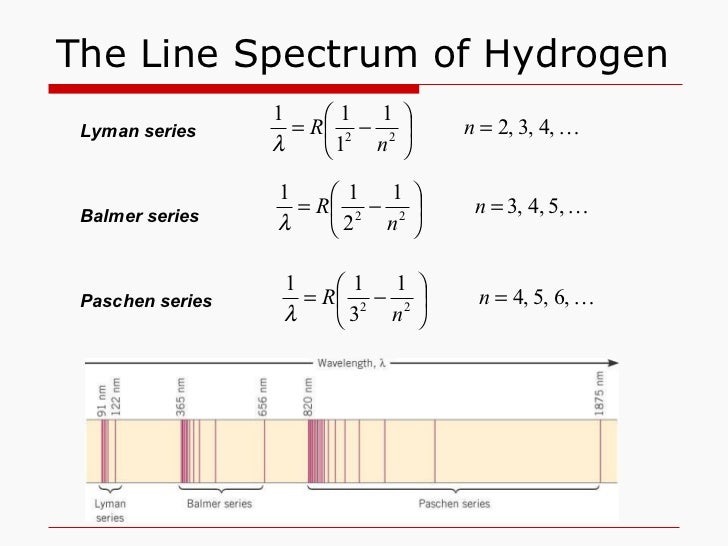

atom that have been measured. The Lyman series is a set of ultraviolet lines that fit the relationship with ni = 1. A series in the infrared region of the spectrum is the Paschen series that corresponds to ni = 3. The Brackett and Pfund series are two more in the infrared region corresponding to ni = 4 and ni = 5.

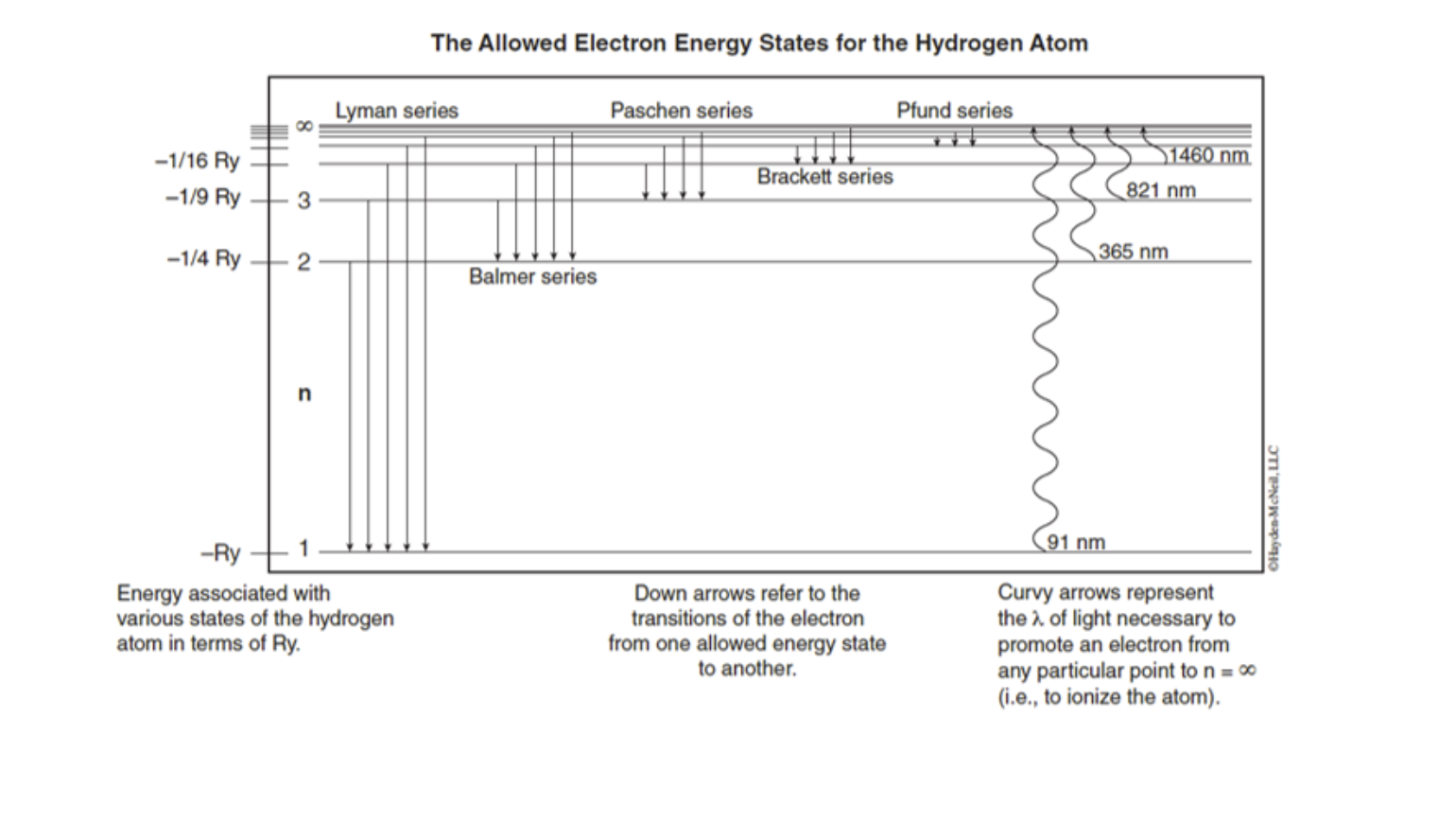

The Allowed Electron Energy States For The Hydrogen Chegg Com

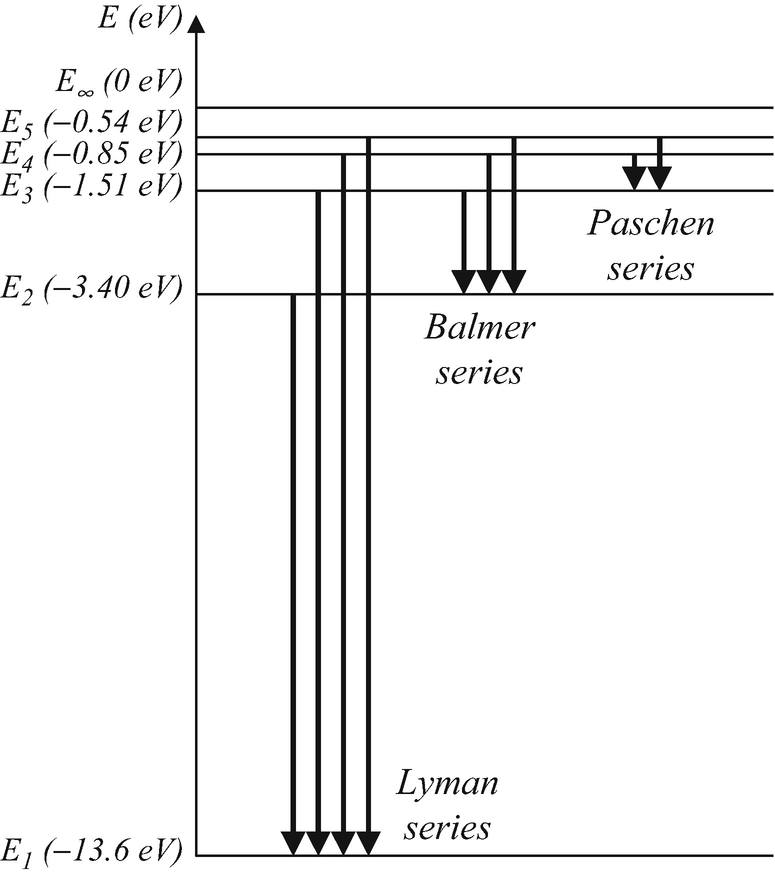

Energy-level diagram for hydrogen showing the Lyman, Balmer, and Paschen series of transitions. The orbital energies are calculated using the above equation, first derived by Bohr. Electron total energies are negative, since the electron is bound to the nucleus, analogous to being in a hole without enough kinetic energy to escape.
