The AFM principle is based on the cantilever/tip assembly that interacts with the sample; this assembly is also commonly referred to as the probe. The AFM probe interacts with the substrate through a raster scanning motion. The up/down and side to side motion of the AFM tip as it scans along the surface is monitored through a laser beam reflected off the cantilever. Park Systems, a world leading manufacturer of Atomic Force Microscopes, presents Park NX-Hybrid WLI, the first fully integrated system that combines Atomic Force Microscopy (AFM) with White Light ...

Atomic-force microscopy is a reference method for traceable and correlative measurements of nanostructures. The Nanostructure Fabrication and Measurement Group is developing critical-dimension and traceable microscope systems to calibrate probe tips and microscopy standards, and measure diverse devices ranging from waveguides to nanoparticles.

Atomic force microscopy diagram

In this article we will discuss about the design of atomic force microscope, explained with the help of a diagram. An atomic force microscope instead of using a lens is provided with a probe to examine the surface of a specimen with a sharp tip which may be several micrometers in and less than 10 nm in diameter at the point near field to be examined. The tip lies at the end of the lever which ... Scanning probe microscopy has been the engine of characterization in nanoscale systems ().Atomic force microscopy (AFM) in particular has developed into a leading technique for high-resolution studies without material restrictions (3-5).It is increasingly being used for detailed characterization in a wide variety of physical, biological, and chemical processes (6, 7). Functionalizing the tip of an atomic force microscope with a CO molecule enabled atomic-resolution imaging of single molecules, and measurement of their adsorption geometry and bond-order relations. In addition, by using scanning tunneling microscopy and Kelvin probe force microscopy, the density of the molecular frontier orbitals and the ...

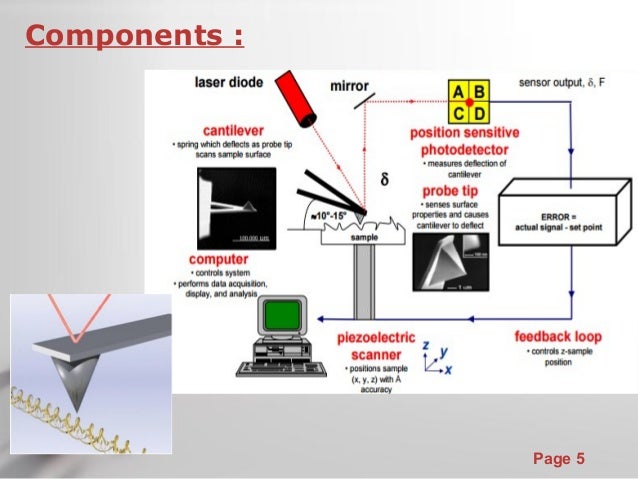

Atomic force microscopy diagram. The Atomic Force Microscope (AFM) takes the image of the surface topography of the sample by force by scanning the cantilever over a section of interest. Depending on how raised or how low the surface of the sample is, it determines the deflection of the beam, which is monitored by the Positive-sensitive photo-diode (PSDP). 2.1. Atomic Force Microscopy (AFM) AFM is a topographic imaging technique with high spatial resolution (a lateral resolution of 1 nm and a vertical resolution of 0.1 nm), and can be used to acquire mechanical properties [].The principle of AFM (Figure 1) is that the sample can be imaged at atomic resolution by detecting the near-field interactions between a tiny tip and the sample surface [17,18]. File:Atomic force microscope block diagram.svg. Size of this PNG preview of this SVG file: 646 × 599 pixels. Other resolutions: 259 × 240 pixels | 517 × 480 pixels | 647 × 600 pixels | 828 × 768 pixels | 1,104 × 1,024 pixels | 926 × 859 pixels. AFM—atomic force microscopy. Atomic force microscopy (AFM) is a kind of scanning probe microscopy, where a probe or tip is used to map the contours of the sample. During operational mode, the tip connected to a cantilever is scanned over the surface of the sample, with a small repulsive force present between the sample and the tip.

Atomic force microscopy (AFM) is a type of scanning probe microscopy (SPM), with demonstrated resolution on the order of fractions of a nanometer, more than 1000 times better than the optical diffraction limit.The information is gathered by "feeling" or "touching" the surface with a mechanical probe. Piezoelectric elements that facilitate tiny but accurate and precise movements on (electronic ... Press Release Atomic-Force Microscopy (AFM) Market 2021: Comprehensive Growth, Industry Size, Share, Emerging Trends, Revenue, COVID-19 Impact Analysis, Demand, Gross Margin and Forecast 2025 with ... Visualization of cell structure by atomic force microscopy. MOJ Anat Physiol. 2017;3(5):160‒161. DOI: 10.15406/mojap.2017.03.00109 Discussion Microscopes produce images of cell that may further be analyzed. While the light and electron microscopes use lenses and a source of light or electrons, atomic force microscopes use a very fine tip that Atomic Force Microscopy (AFM) 1. General Principle The Atomic Force Microscope is a kind of scanning probe microscope in which a topographical image of the sample surface can be achieved based on the interactions between a tip and a sample surface. The atomic force microscope was invented by Gerd Binning et al. in 1986 at IBM Zurich based on ...

Download scientific diagram | Schematic drawing of the atomic force microscope. from publication: Direct Measurement of Interaction Forces between Surfaces in Liquids Using Atomic Force Microscopy ... Atomic force microscopy (AFM) is a tool for studying the microscopic world. Capable of using and measuring van der Waals forces, AFM is a new super-resolution near-field probe microscopic technique that can be applied to both conductors and insulators. Most existing indirect or calcula-tion procedures estimate the internal surface structure of Keywords:Atomic force microscopy, Protein structure, Amyloid, Disease, Correlative microscopy, NMR. Abstract:Proteins are versatile macromolecules that perform a variety of functions and participate in virtually all cellular processes. The functionality of a protein greatly depends on its structure and alterations may result in the development ... §D. Sarid, Scanning Force Microscopy with Applications to Electric, Magnetic and Atomic Forces , Revised Edition, Oxford University Press, 1994. § U. Dürig, "Interaction sensing in dynamic force microscopy", New Journal of
