May 20, 2019 · Fuel line size for troy built TB20CS weed eater I cant find this info in the Ad. Question about Troy-Bilt 4-Cycle Curve Shaft Gas String Trimmer # 41ADT41C Do you have a diagram or a picture of how the fuel lines are connected and routed on a troy bilt tb90bc? A good - Answered by a verified. Does anyone have a diagram for which fuel line goes where on a 2 cycle troy bilt tb20cs tuffy weed eater? Hello 1166351, We have a couple articles and videos on that subject.

The 3 fuel lines should be connected as follows: The (clear) main fuel line with the filter (filter inside the fuel tank) goes to the bottom of the carburetor (or the elbow shaped nipple). The (clear) fuel intake line runs from the top of the carburetor (straight nipple) and goes to the short post on the back of the primer bulb.

Troy-bilt tb20cs fuel line diagram

Replacing broken & brittle lines replaced on this 20cc 2 cycle weed trimmer. https://amzn.to/33UVFVjhttps://amzn.to/39u5wmm REPACK Troy-bilt Tb20cs Fuel Line Diagram For Pare Zip X64 Full Version Activator Serial Torrent Ultimate Au CAD 2008 Full Crack .rar Key 32 Deutz Fahr SDF E Parts-torrent.83 [EXCLUSIVE] Conqueronlineitemhack Cracked 32bit Free License Utorrent Download Hot Control 8.5 - X32 Serial Rar Troybilt TB20CS gas line trimmer parts - manufacturer-approved parts for a proper fit every time! We also have installation guides, diagrams and manuals to help you along the way!

Troy-bilt tb20cs fuel line diagram. Troy Bilt Tb20cs Fuel Line Diagram. Think of a heart. Troy bilt tb25et fuel line comes out of fuel tank routes through bracket to fuel inlet on the carb right side line comes back out of carb on top back through bracket to backside of primer bulb and if nipples are 2 sizes connect to shorter one or push on bulb and hold fingers over nipples one ... New Member. Sep 19, 2010, 08:50 AM. Troybilt model tb20cs gas line routing diagram. 2 lines from gas tank to primer and from primer to carb need diagram of lines model tb20cs line trimmer. jeep1999. View Public Profile. Find latest posts by jeep1999. kgl1919 Posts: 24, Reputation: 3. New Member. Lookup Parts by Diagram. Use our parts diagram tool below to find the parts you need for your machine. Select the model and year, then browse the parts diagrams to find the right part. Add to cart when you're ready to purchase and we'll ship it to you as soon as possible! Financing Now Available for Online Purchases.*. Learn More. Troy-Bilt String Trimmer Primer Bulb. Genuine OEM Part # 791-683974B | RC Item # 1617169. $14.01. In Stock. ADD TO CART. Small engine primer bulb with hose, large diameter. If the engine does not start the primer bulb may be defective and unable to draw additional fuel in to the carburetor to assist with starting the engine.

Troy Bilt TB20CS 41CDT20C966 41CDT20C966 TB20CS Parts Diagram for Engine Assembly. Order Status. Get Support. 1-877-737-2787. Hours of Operation. M-F 9a-6p ET. Sat 9a-5p ET. Sun (Closed) Dalom WT-827 Carburetor w Air Filter Fuel Line for Troy-Bilt 753-05133 TB10CS TB20CS TB20DC TB65SS TB70FH TB70SS TB90BC Trimmer TB310QS TB320BV Leaf Blower. 4.4 out of 5 stars. 214. $17.98. $17. Troy bilt TB25ET - Fuel line comes out of fuel tank routes through bracket to fuel inlet on the carb right side, Line comes back out of Carb on top back through bracket to backside of primer bulb and if nipples are 2 sizes connect to shorter one or push on bulb and hold fingers over nipples one has vacuum other will push, connect to what should be shorter one with vacuum, Line then comes off ... Oct 26, 2018 · Troy-bilt Tb20cs Fuel Line Diagram Hello,most diagrams aren't very clear,but I will include diagramweb.net the fuel tank is the fuel filter and line connected to it goes thru the black filter. Outdoor Gasoline and Electric Powered Equipment and Small Engines - troybilt tb20cs fuel line diagram - does anyone know why my primer bulb does not fill.

This was. I need a diagram for the routing of the fuel lines on a troy bilt 2 cycle trimmer. - Answered by a verified Technician have troy-bilt 2-cycle trimmer mod,tb70ss 41adt70c that wont schematron.org fire after priming. have checked spark,compression,fuel lines,fuel filter and spark arrestor screen. 1 Review. $ 14.33. Add to cart. In Stock. Get this part fast. Average delivery time via standard shipping: 1.8 days. PartSelect Number PS9456539. Manufacturer Part Number 753-04233. Manufactured by Troy-Bilt. i have troy-bilt,TB20CS trimmer. I replaced broken fuel line, now will prime,start,then flood. thought i may have installed lines incorrect so switched around until it seems to prime like when new. took carb apart,cleaned, diaphram didnt look damaged. did same thing. when first primed, will start ,run for less than minute then seems to flood. thanks for any help as retired and on fixed income ... Hello,most diagrams aren't very clear,but I will include one.Inside the fuel tank is the fuel filter and line connected to it goes thru the black filter case and onto the bottom nipple of the carburetor.Connect a line to the top nipple on carb and thru case and connect to upper nipple on the primer.A primer return line then connects from bottom nipple of primer and pushes up into tank.Cut line ...

Solved Troy Bilt Gas Powered Blower Was Running At Full Fixya

Check out this Coop's Simple How-To - Replace a Troy Bilt Fuel Line Hopefully this video helped you save some money by showing how simple it is to make a re...

Dalom Wt 827 Carburetor W Air Filter Fuel Line For Troy Bilt 753 05133 Tb10cs Tb20cs Tb20dc Tb65ss Tb70fh Tb70ss Tb90bc Trimmer Tb310qs Tb320bv Leaf Blower Replacement Parts Mowers Outdoor Power Tools Horeto Com

The Troy-Bilt two-cycle gasoline trimmer model TB20CS utilizes a split line cutting attachment that makes cutting grass and weeds a very easy task to accomplish. This cutting attachment system is called the "EZ-Link" system, and allows a user to operate up to seven additional add-on cutting heads (purchased separately).

Troybilt Tb20cs Gas Line Trimmer Parts Sears Partsdirect

Shop with Confidence. Avoid frustration when buying parts, attachments, and accessories with the Troy-Bilt Right Part Pledge. If you purchase the wrong part from Troy-Bilt or a Troy-Bilt authorized online reseller, Troy-Bilt, or your Troy-Bilt authorized online reseller will work with you to identify the correct part for your equipment and initiate a free exchange.

How To Replace Trimmer Fuel Lines Ereplacementparts Com

Savior 753-04338 Carburetor with Gasket Fuel Line for Troy Bilt TB70SS Carburetor TB10CS TB20CS TB20DC TB310QS TB320BV TB65SS TB70FH TB90BC 753-04333 753-05133. 4.5 out of 5 stars. 79. $16.99.

Gas Fuel Tank Homelite 3000hb Hlt18 Hlt16 And 50 Similar Items

Download the manual for model Troybilt TB20CS gas line trimmer. Sears Parts Direct has parts, manuals & part diagrams for all types of repair projects to help you fix your gas line trimmer!

Troy Bilt Tb320bv User Manual

Troy-bilt Tb20cs Fuel Line Diagram; Pioneer Fh-x700bt Wiring Harness Diagram; 2007 Coachmen Sportscoach Motorhome Wiring Diagram; Honeywell L8124a Wiring Diagram; Magnesium Fluoride Lewis Dot Diagram; Husqvarna Yth2448 Belt Diagram; Ruger Gp100 Parts Diagram; Belt Diagram For Craftsman Riding Mower Lt1000; Square D 8536 Wiring Diagram

Troy Bilt Fuel Line String Trimmer Parts For Sale Ebay

troybilt tb20cs fuel line diagram. does anyone know why my primer bulb does not fill when push in? Need diagram for fuel tank to primer and carb Upvote #2 05-29-11, 12:33 AM M. mailman2. Member. Thread Starter. Join Date: Apr 2007. Location: Plymouth. Posts: 75 Received 0 Votes on 0 Posts ...

Troy Bilt Trimmer Tb20cs Ereplacementparts Com

2-Cycle Gasoline Trimmer. TB20CS. SAVE THESE INSTRUCTIONS. For service call 1-800-828-5500 in the United States, or 1-800-668-1238 in Canada to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.troybilt.com. DO NOT RETURN THE UNIT TO THE RETAILER.

Troy Bilt Trimmer Tb20cs Ereplacementparts Com

REPACK Troy-bilt Tb20cs Fuel Line Diagram For Pare Zip X64 Full Version Activator Serial Torrent Ultimate Au CAD 2008 Full Crack .rar Key 32 Deutz Fahr SDF E Parts-torrent.83 [EXCLUSIVE] Conqueronlineitemhack Cracked 32bit Free License Utorrent Download Hot Control 8.5 - X32 Serial Rar

Quick Fuel Intake Manifold Mobil Motor Terbaru Berita Review Panduan Membali Gambar Dan Lebih

The 3 fuel lines should be connected as follows: The (clear) main fuel line with the filter (filter inside the fuel tank) goes to the bottom of the carburetor (or the elbow shaped nipple). The (clear) fuel intake line runs from the top of the carburetor (straight nipple) and goes to the short post on the back of the primer bulb.

Troy Bilt 4 Cycle Trimmer Carburetor Diagram Wiring Site Resource

Does anyone have a diagram for which fuel line goes where on a 2 cycle troy bilt tb20cs tuffy weed eater? Hello 1166351, We have a couple articles and videos on that subject.

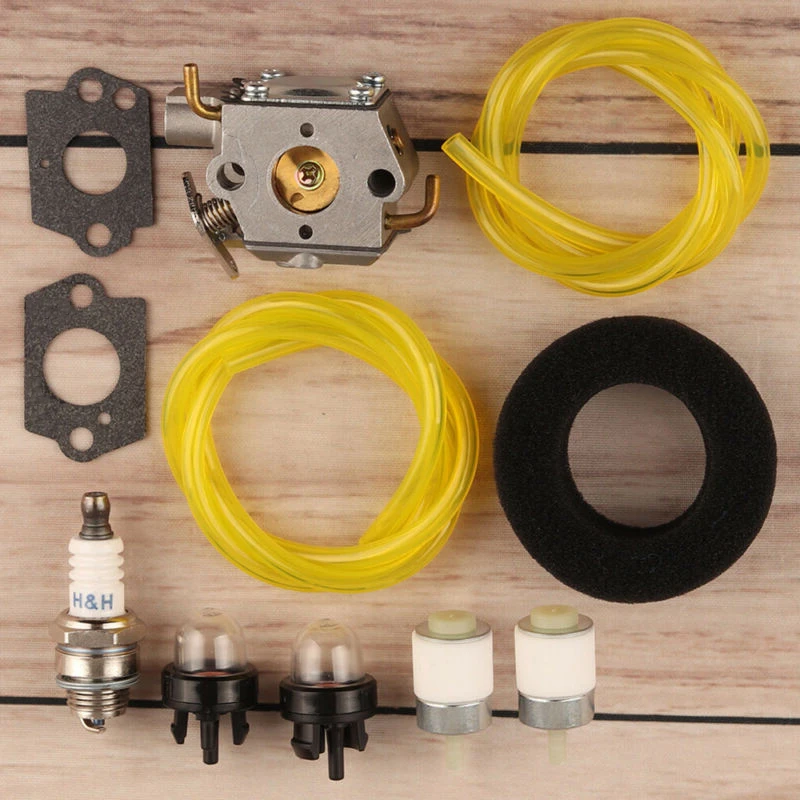

Carburetor Fuel Line Primer Bulb Kit For Mtd Troy Bilt Tb10cs Tb20cs Tb20ds Tb65ss Tb70ss Tb90bc 753 05133 Walbro Wt 827 Wt 275 Kit Kits Kit Carburetorkit Fuel Aliexpress

Troybilt TB20CS gas line trimmer parts - manufacturer-approved parts for a proper fit every time! We also have installation guides, diagrams and manuals to help you along the way!

Troy Bilt Trimmer Tb20cs Ereplacementparts Com

Mtd 75304338 Carburetor Assembly With Fuel Line Jacks Small Engines

Replacing broken & brittle lines replaced on this 20cc 2 cycle weed trimmer. https://amzn.to/33UVFVjhttps://amzn.to/39u5wmm

Need A Fuel Line Diagram For A Eater Bc2400 Thanks Dan

I Have A Tb90bc Troy Bilt 2 Cycle Trimmer Fuel Is Draining Frame The Carb And Eventually All The Fuel Will Drain From

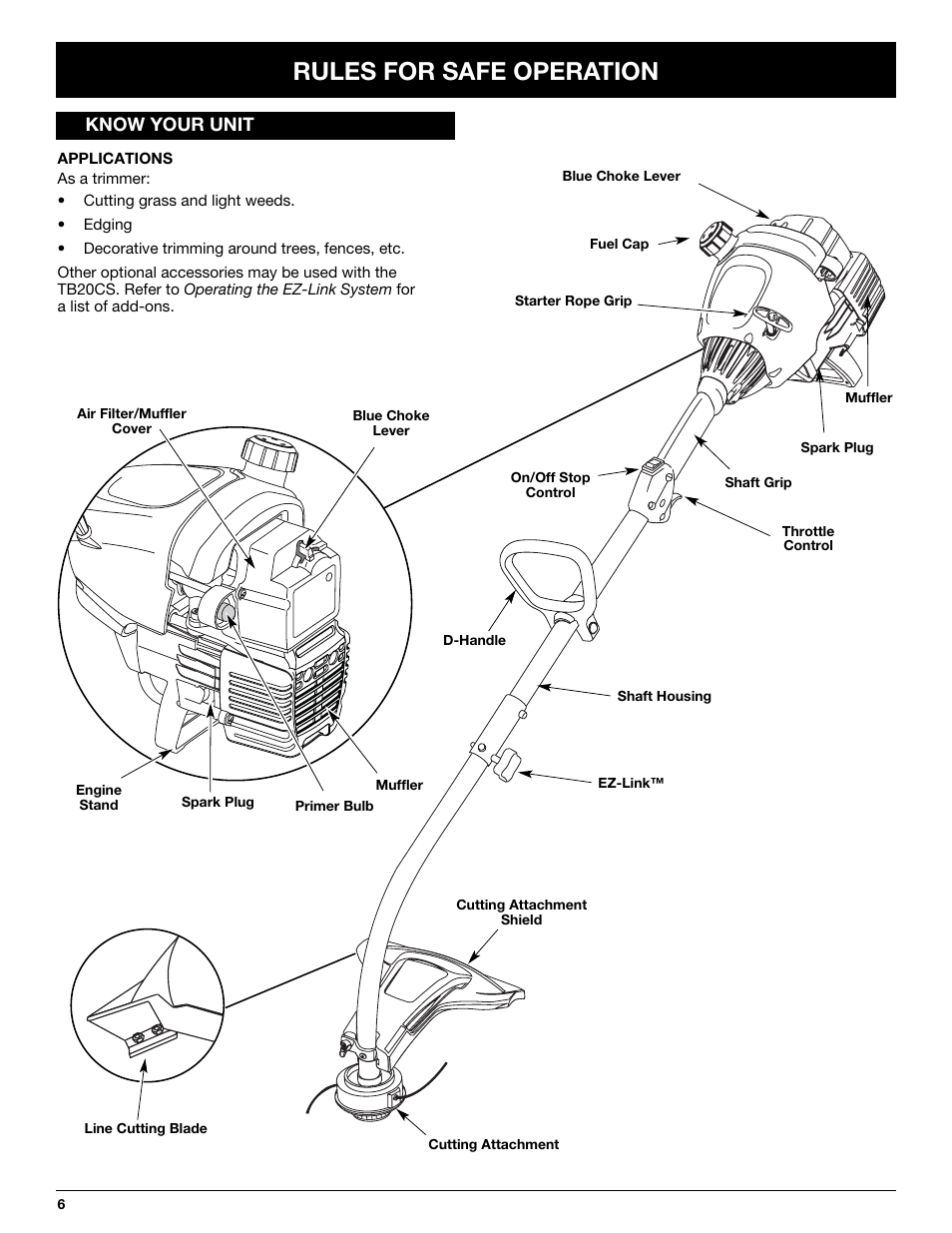

Rules For Safe Operation Troy Bilt Tb20cs User Manual Page 6 64

Troy Bilt Tb 240 Tb 220 Tb 280 Es Tb 230 User Manual

Troy Bilt Fuel Line String Trimmer Parts For Sale Ebay

Starter Recoil Assy Mtd Troy Bilt Troybilt And 50 Similar Items

1999 Ford F150 Brake Lines Diagram Wiring Site Resource

Troy Bilt 4 Cycle Trimmer Carburetor Diagram Wiring Site Resource

Amazon Com Troy Bilt Trimmer Fuel Line

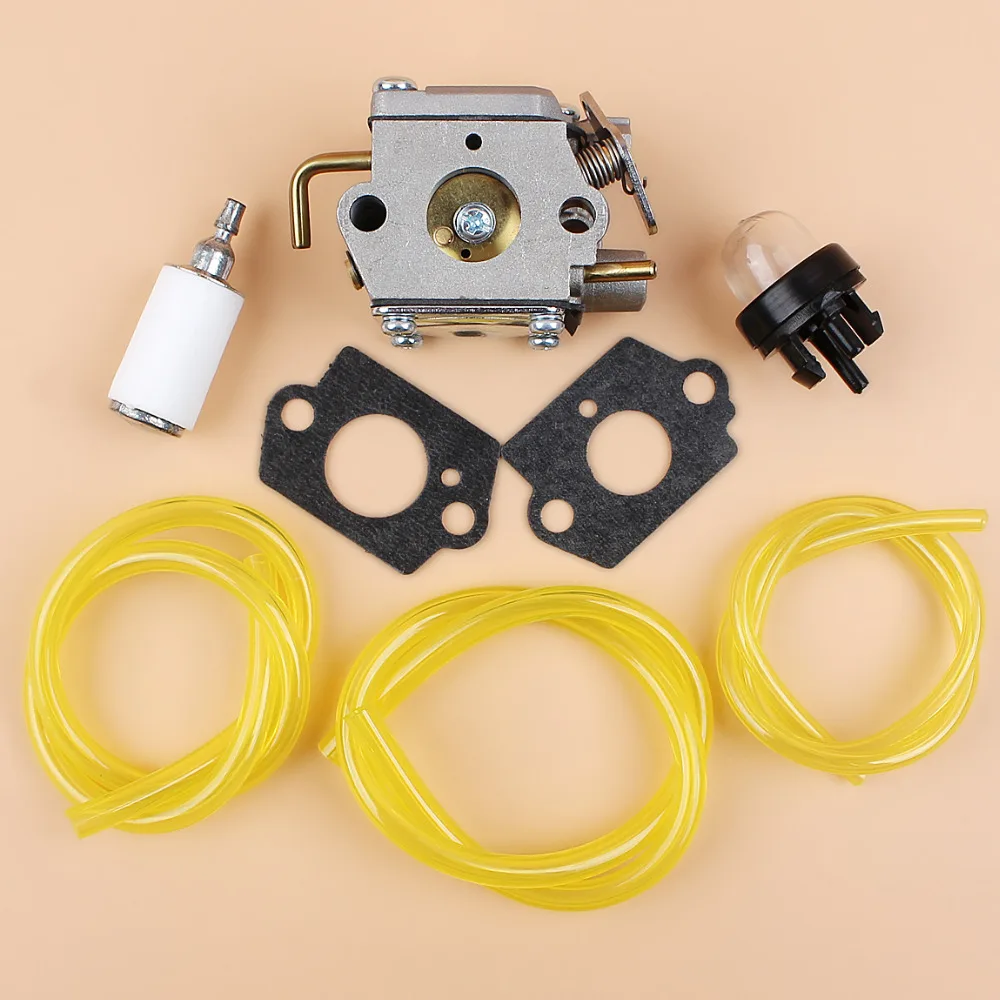

Replacement Carburetor Kit For Troy Bilt Tb10cs Tb20cs Tb20ds Tb65ss Tb70ss Tb90bc Buy Online At Best Prices In Pakistan Daraz Pk
